Above 600 pair for all cables, ... the residence? This system is not always used for wiring inside the home. Instead, a color code using green, red, black, and yellow is frequently employed....

January 8, 2025 - These extra pairs are often referred ... solid copper wire with the insulation colors red, green, yellow, and black (legacy) or a two-color code of blue, orange, and white....

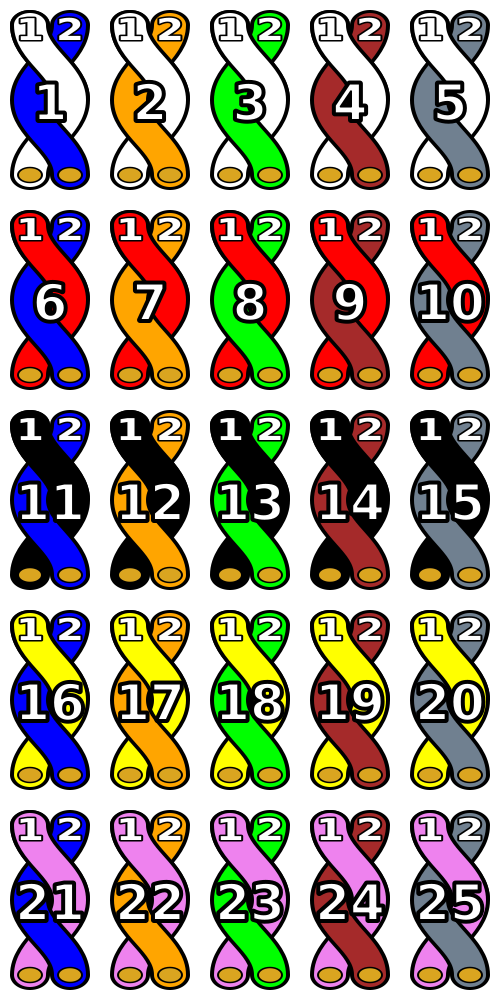

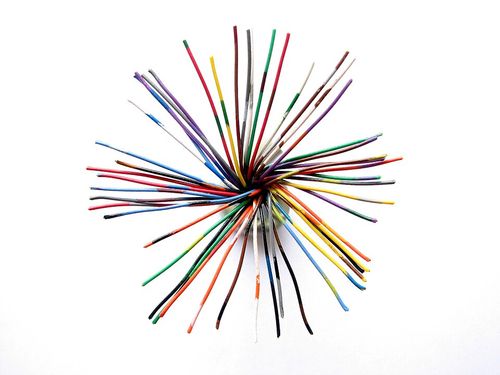

These are the standard color codings for telephone cables containing up to 26 pairs. For cables containing more than 26 pairs, a Binder Color Code wraps multiple bundles of 25 pairs with a colored binder thread.

So pair 26 (the first pair in binder group 2) uses the same White/Blue conductor colours as pair 1, but is identified by the White/Orange binder around its 25-pair sub-unit. The binder colour sequence continues using the same major/minor logic. The next binder colours after White/Brown are ...

Colour Code for the following Installation Cable Types: J-Y(St)Y . . . Lg (Pairs in layers) 2-paired installation cables are stranded to a star quad circuit 1 a-core red, b-core black circuit 2 a-core white, b-core yellow 4- and multi-paired installation cables a-core of 1st pair in each layer ...

LINE 1 uses the red-green pair. Line 2 uses the yellow-black pair. The cable is very small, as are the wires inside, and should not be confused with electrical wires, which are much larger. The wires themselves are almost hair-like, as opposed to electrical wires, which are fairly heavy and ...

Colour coded binders are used to identify 25 pair groups of colour ... For cables through 600 pairs, 25 pair groups are identified by their binder colours in the same sequence as the pair · identification is accomplished. Group 1 has White-Blue binders. Group 2 has White-Orange binders, etc.

Cables containing more than 25 pairs are assembled in · Binder No. Binder Color · Binder No. Binder Color · sub-groups. The sub-groups are identified, by spirally · 1 · White-Blue · 13 · Black-Green · applied color-coded non-hygroscopic binding tapes. The · 2 ·

Multi/Cable Multi-Pair Color Codes

Global distributor of communication and security products, electrical and electronic wire & cable.

Look at the base (solid) colour of each conductor. The wire with a major colour base (White, Red, Black, Yellow or Violet) is the tip. The wire with a minor colour base (Blue, Orange, Green, Brown or Slate) is the ring. The opposite colour appears as a band or stripe.

The first pair has one ... yellow wire ( "ring"). For a single phone line, only the green and red pair are normally used. The black and yellow pair is normally spare and available to install a second phone line. The other color scheme is somewhat more complicated and is based on a primary color ...

identified by a color coded binder following the above color chart. Example: 50 pair cable will have 2 groups of 25 pairs; first binder color is

Colour coded binders are used to ... colour coded pairs. Identification of Groups of Pairs For cables through 600 pairs, 25 pair groups are identified by their binder colours in the same sequence as the pair identification is accomplished. Group 1 has White-Blue binders. Group 2 has White-Orange ...

This colour code is most commonly utilised in multi-pair external telephone cables.

December 14, 2015 - However, if you only have one phone line for your house, you should use the same color pair for each new phone jack you install. There are two types of standard residential modular telephone plugs. The most common is the RJ-11, which uses only two of the wires in a four (or more) conductor small cable. It is the same kind of plug that you use to plug your household telephone into the phone wall jack. The other is the RJ-14, which uses four wires and it’s used to handle two telephone lines or 2-line phones.

Standard Telephone Wiring Color Code · There is a possibility of two color codes that you may find in your home, I will cover both of them but only up to a 4 pair cable which consists of 8 conductors. The cable in your home may consist of only 2 pairs, 3 pairs or may be a 4 pair cable.

CW1308 Telpehone Cable · × · ... Colour Code (10 Pair Unit Construction) CW1308 Telephone Cable Colour Chart · CW1600 Colour Code ·...

August 27, 2012 - Most of the time I see pairs split to match the old quad color code...solid orange wire to red on jack, green wire to green on jack. Click to expand... I've only seen this done once, it was real hack work.
