wha, here you go for people who come by later:

  public static int abs(int num, int n)
  {
      int topbit = 1<<(n-1);
      int ones = (topbit<<1)-1;
      num &= ones;                     // sanity check
      if (0==(topbit&num)) {
          return num;
      } else {
          return (num ^ ones) + 1;
      }
  }

so the question is, can operations be removed from here to make this function faster?

This is more of a programming question than a math one. Note that the right shift >> is sign-extending in the C language. Then, assuming an int is 32-bit wide:

                   // if a >= 0          // if a < 0

int t = a >> 31;   // t = 0              // t = 0xFFFFFFFF = -1
a = (a^t) - t;     // a = (a^0)-0 = a    // a = (a^(-1))-(-1) = ~a + 1 = -a

For negative a, the value of a >> b is implementation-defined (in most implementations, this performs arithmetic right shift, so that the result remains negative).

This is, however, a matter better suited to discuss next door at stackoverflow.com.

Same as existing answers, but with more explanations:

Let's assume a twos-complement number (as it's the usual case and you don't say otherwise) and let's assume 32-bit:

First, we perform an arithmetic right-shift by 31 bits. This shifts in all 1s for a negative number or all 0s for a positive one (but note that the actual >>-operator's behaviour in C or C++ is implementation defined for negative numbers, but will usually also perform an arithmetic shift, but let's just assume pseudocode or actual hardware instructions, since it sounds like homework anyway):

mask = x >> 31;

So what we get is 111...111 (-1) for negative numbers and 000...000 (0) for positives

Now we XOR this with x, getting the behaviour of a NOT for mask=111...111 (negative) and a no-op for mask=000...000 (positive):

x = x XOR mask;

And finally subtract our mask, which means +1 for negatives and +0/no-op for positives:

x = x - mask;

So for positives we perform an XOR with 0 and a subtraction of 0 and thus get the same number. And for negatives, we got (NOT x) + 1, which is exactly -x when using twos-complement representation.

Assuming 32-bit words, as stated in the question:

For negative x, x >> 31 is implementation-defined in the C and C++ standards. The author of the code expects two’s complement integers and an arithmetic right-shift, in which x >> 31 produces all zero bits if the sign bit of x is zero and all one bits if the sign bit is one.

Thus, if x is positive or zero, y is zero, and x + y is x, so (x + y) ^ y is x, which is the absolute value of x.

If x is negative, y is all ones, which represents −1 in two’s complement. Then x + y is x - 1. Then XORing with all ones inverts all the bits. Inverting all the bits is equivalent to taking the two’s complement and subtracting one, and two’s complement is the method used to negate integers in two’s complement format. In other words, XORing q with all ones gives -q - 1. So x - 1 XORed with all ones produces -(x - 1) - 1 = -x + 1 - 1 = -x, which is the absolute value of x except when x is the minimum possible value for the format (−2,147,483,648 for 32-bit two’s complement), in which case the absolute value (2,147,483,648) is too large to represent, and the resulting bit pattern is just the original x.

Two's complement is a clever way of storing integers so that common math problems are very simple to implement.

To understand, you have to think of the numbers in binary.

It basically says,

• for zero, use all 0's.
• for positive integers, start counting up, with a maximum of 2^{(number of bits - 1)}-1.
• for negative integers, do exactly the same thing, but switch the role of 0's and 1's and count down (so instead of starting with 0000, start with 1111 - that's the "complement" part).

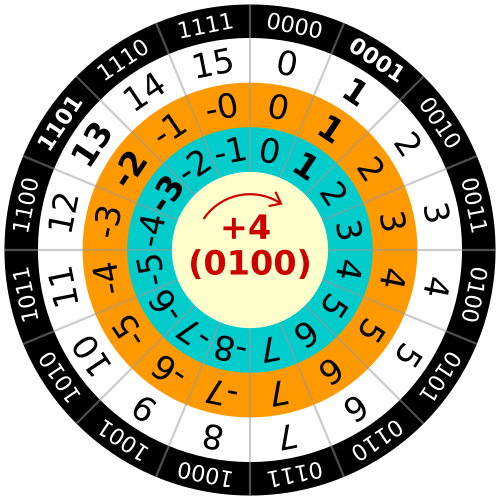

Let's try it with a mini-byte of 4 bits (we'll call it a nibble - 1/2 a byte).

• 0000 - zero
• 0001 - one
• 0010 - two
• 0011 - three
• 0100 to 0111 - four to seven

That's as far as we can go in positives. 2³-1 = 7.

For negatives:

• 1111 - negative one
• 1110 - negative two
• 1101 - negative three
• 1100 to 1000 - negative four to negative eight

Note that you get one extra value for negatives (1000 = -8) that you don't for positives. This is because 0000 is used for zero. This can be considered as Number Line of computers.

Distinguishing between positive and negative numbers

Doing this, the first bit gets the role of the "sign" bit, as it can be used to distinguish between nonnegative and negative decimal values. If the most significant bit is 1, then the binary can be said to be negative, where as if the most significant bit (the leftmost) is 0, you can say the decimal value is nonnegative.

"Sign-magnitude" negative numbers just have the sign bit flipped of their positive counterparts, but this approach has to deal with interpreting 1000 (one 1 followed by all 0s) as "negative zero" which is confusing.

"Ones' complement" negative numbers are just the bit-complement of their positive counterparts, which also leads to a confusing "negative zero" with 1111 (all ones).

You will likely not have to deal with Ones' Complement or Sign-Magnitude integer representations unless you are working very close to the hardware.
