At its simplest, the app.config is an XML file with many predefined configuration sections available and support for custom configuration sections. A "configuration section" is a snippet of XML with a schema meant to store some type of information.

• Overview (MSDN)
• Connection String Configuration (MSDN)

Settings can be configured using built-in configuration sections such as connectionStrings or appSettings. You can add your own custom configuration sections; this is an advanced topic, but very powerful for building strongly-typed configuration files.

Web applications typically have a web.config, while Windows GUI/service applications have an app.config file.

Application-level config files inherit settings from global configuration files like machine.config. Web also applications inherit settings from applicationHost.config.

Reading from the App.Config

Connection strings have a predefined schema that you can use. Note that this small snippet is actually a valid app.config (or web.config) file:

<?xml version="1.0"?>
<configuration>
    <connectionStrings>
        <add name="MyKey"
             connectionString="Data Source=localhost;Initial Catalog=ABC;"
             providerName="System.Data.SqlClient"/>
    </connectionStrings>
</configuration>

Once you have defined your app.config, you can read it in code using the ConfigurationManager class. Don't be intimidated by the verbose MSDN examples; it's actually quite simple.

string connectionString = ConfigurationManager.ConnectionStrings["MyKey"].ConnectionString;

Writing to the App.Config

Frequently changing the *.config files is usually not a good idea, but it sounds like you only want to perform one-time setup.

See: Change connection string & reload app.config at run time which describes how to update the connectionStrings section of the *.config file at runtime.

Note that ideally you would perform such configuration changes from a simple installer.

Location of the App.Config at Runtime

Q: Suppose I manually change some <value> in app.config, save it and then close it. Now when I go to my bin folder and launch the .exe file from here, why doesn't it reflect the applied changes?

A: When you compile an application, its app.config is copied to the bin directory¹ with a name that matches your exe. For example, if your exe was named "test.exe", there should be a ("text.exe.config" in .net framework) or ("text.dll.config" in .net core) in your bin directory. You can change the configuration without a recompile, but you will need to edit the config file that was created at compile time, not the original app.config.

1: Note that web.config files are not moved, but instead stay in the same location at compile and deployment time. One exception to this is when a web.config is transformed.

.NET Core

New configuration options were introduced with .NET Core and continue with the unified .NET (version 5+). The way that *.config files works hasn't fundamentally changed, but developers are free to choose new, more flexible configuration paradigms.

As with .NET Framework configuration .NET Core can get quite complex, but implementation can be as simple as a few lines of configuration with a few lines of c# to read it.

• Configuration in ASP.NET Core
• Configuration in .NET Core

For .Net Framework, try this

AppDomain.CurrentDomain.SetupInformation.ConfigurationFile

For .Net core or anything newer, see the other answers.

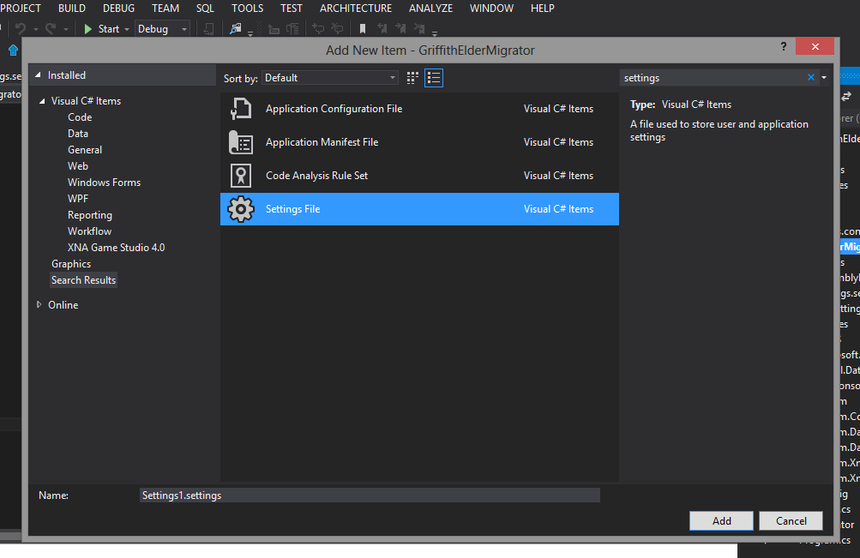

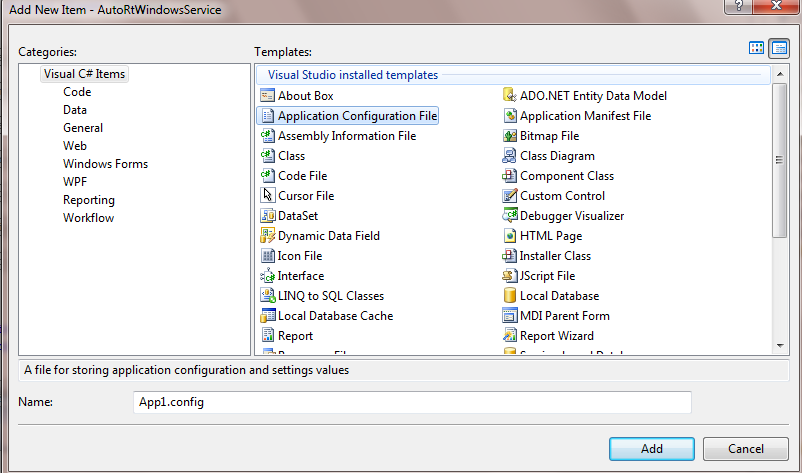

Right click on application->Go to Add->you will see the exact picture What i have attached here->Pick the Application Config File.

If you don't have the config file, it uses the default values from the designer. However, the config file allows users/administrators to easily change settings - such as the server you talk to, themes, etc. If you don't have the file, where would you expect those settings to be stored?

You can have per-user settings as well as per-application settings, which are stored in different locations.
