Here's the stuff I ran into:
1) RTFM and install the "Microsoft Visual C++ 2008 SP1 Redistributable Package" mentioned at top of the installation docs. I missed this at first because the Helios instructions are at the end.
2) Close all open editor tabs before opening a class file. Otherwise it's easy to get an outdated editor tab from a previous attempt.
3) Open the class file in the "Java Class File Editor" (not "Java Class File Viewer"). Use "Open With" in the context menu to get the right editor. If pleased with results, make it the default editor in the File Association settings, in Window/Preference General/Editors/File Associations select *.class to open with "Java Class File Editor".
4) This guy recommends installing the Equinox SDK from the Helios update site. I did, but I'm not sure if this was really necessary. Anyone know?
5) If the class files you are trying to view are in an Eclipse Java project, they need to be in the project's build path. Otherwise, an exception ("Not in the build path") will show up in the Eclipse error log, and decompile will fail. I added the class files as a library / class file folder to the build path.
6) Drag/dropping a class file from Windows Explorer or opening it with File/Open File... will not work. In my tests, I gives a "Could not open the editor: The Class File Viewer cannot handle the given input ('org.eclipse.ui.ide.FileStoreEditorInput')." error. That is probably the wrong editor anyways, see 3).
7) After getting the plugin basically running, some files would still not decompile for an unknown reason. This disappeared after closing all tabs, restarting Helios, and trying again.
Answer from Universalspezialist on Stack OverflowHere's the stuff I ran into:
1) RTFM and install the "Microsoft Visual C++ 2008 SP1 Redistributable Package" mentioned at top of the installation docs. I missed this at first because the Helios instructions are at the end.
2) Close all open editor tabs before opening a class file. Otherwise it's easy to get an outdated editor tab from a previous attempt.
3) Open the class file in the "Java Class File Editor" (not "Java Class File Viewer"). Use "Open With" in the context menu to get the right editor. If pleased with results, make it the default editor in the File Association settings, in Window/Preference General/Editors/File Associations select *.class to open with "Java Class File Editor".
4) This guy recommends installing the Equinox SDK from the Helios update site. I did, but I'm not sure if this was really necessary. Anyone know?
5) If the class files you are trying to view are in an Eclipse Java project, they need to be in the project's build path. Otherwise, an exception ("Not in the build path") will show up in the Eclipse error log, and decompile will fail. I added the class files as a library / class file folder to the build path.
6) Drag/dropping a class file from Windows Explorer or opening it with File/Open File... will not work. In my tests, I gives a "Could not open the editor: The Class File Viewer cannot handle the given input ('org.eclipse.ui.ide.FileStoreEditorInput')." error. That is probably the wrong editor anyways, see 3).
7) After getting the plugin basically running, some files would still not decompile for an unknown reason. This disappeared after closing all tabs, restarting Helios, and trying again.
To Make it work in Eclipse Juno - I had to do some additional steps.
In General -> Editors -> File Association
- Select "*.class" and mark "Class File Editor" as default
- Select "*.class without source" -> Add -> "Class File Editor" -> Make it as default
- Restart eclipse
Videos
I don't find the step and URL. Here I used
Step 1: Go to Help -> Install New Software -> click on 'Add'
Step 2: On pop-up fill these below details:
Name: JavaDecompiler
Location: http://jd.benow.ca/jd-eclipse/update/
Step 3: Click on checkbox - Java Decomplier Eclipse Plug-in.
Step 4: Click -> Next -> Next -> Accept The Agreement -> Finish
Step 5: Click on check-box -> Accept the trust certificate -> OK
Step 6: Restart the eclipse.
Hope this help!
Eclipse Class Decompiler plugin is delisted from the Eclipse Marketplace due to being bundled with adware, as explained in Eclipse Foundation security bulletin (thanks to @slowhand for pointing this out).
There is an adware-free fork here on Eclipse Marketplace with homepage here.
I would strongly suggest against installing the original Eclipse Class Decompiler!
For Eclipse 2018-09 , the problem was related to " class without source "
I had resolved this issue by going to:
- Preferences
- General
- Editors
- File Associations
- Class without source

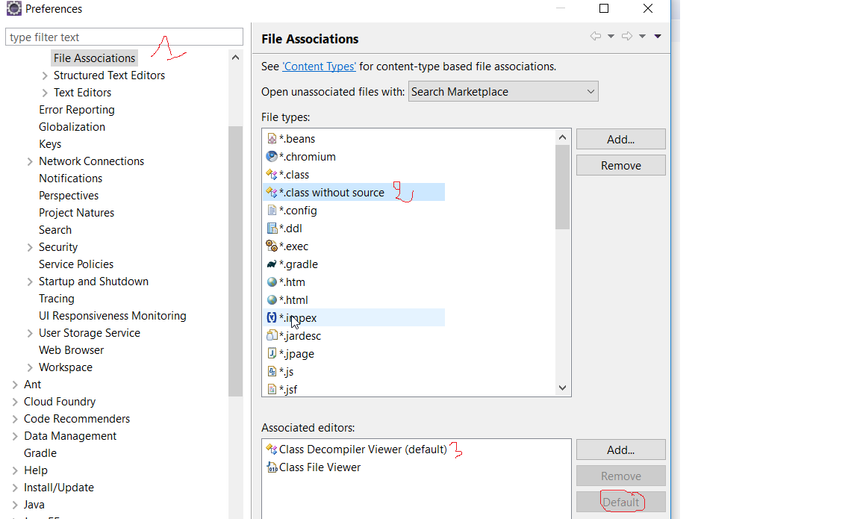

and setting decompliler viewer as default : see the following screen shot:
Obviously I mixed the actual JD-eclipse-plugin an a plugin called JadClipse for Eclipse which is a slightly different plugin from eclipse marketplace. Thus when I followed the installation instructions of JD-eclipse, I could set the options for the screenshot posted within the question. So I set JD-eclipse as default for both *.class-files with and those without source-code.
Second mistake I did was a pretty silly and obvious one, namely that I wanted to browse the jar-files from within WEB-INF-folder of my Tomcat instead of from within Java Resources. Thus I could not dive into the jar-files at all hindering me to get to the class-level and thus to decompile those classes contained within the jar.
I hope this helps anyone outside also having trouble with the plugin for eclipse.
