A norm is a function that takes a vector as an input and returns a scalar value that can be interpreted as the "size", "length" or "magnitude" of that vector. More formally, norms are defined as having the following mathematical properties:
- They scale multiplicatively, i.e. Norm(a·v) = |a|·Norm(v) for any scalar a
- They satisfy the triangle inequality, i.e. Norm(u + v) ≤ Norm(u) + Norm(v)
- The norm of a vector is zero if and only if it is the zero vector, i.e. Norm(v) = 0 ⇔ v = 0
The Euclidean norm (also known as the L² norm) is just one of many different norms - there is also the max norm, the Manhattan norm etc. The L² norm of a single vector is equivalent to the Euclidean distance from that point to the origin, and the L² norm of the difference between two vectors is equivalent to the Euclidean distance between the two points.
As @nobar's answer says, np.linalg.norm(x - y, ord=2) (or just np.linalg.norm(x - y)) will give you Euclidean distance between the vectors x and y.
Since you want to compute the Euclidean distance between a[1, :] and every other row in a, you could do this a lot faster by eliminating the for loop and broadcasting over the rows of a:
dist = np.linalg.norm(a[1:2] - a, axis=1)
It's also easy to compute the Euclidean distance yourself using broadcasting:
dist = np.sqrt(((a[1:2] - a) ** 2).sum(1))
The fastest method is probably scipy.spatial.distance.cdist:
from scipy.spatial.distance import cdist
dist = cdist(a[1:2], a)[0]
Some timings for a (1000, 1000) array:
a = np.random.randn(1000, 1000)
%timeit np.linalg.norm(a[1:2] - a, axis=1)
# 100 loops, best of 3: 5.43 ms per loop
%timeit np.sqrt(((a[1:2] - a) ** 2).sum(1))
# 100 loops, best of 3: 5.5 ms per loop
%timeit cdist(a[1:2], a)[0]
# 1000 loops, best of 3: 1.38 ms per loop
# check that all 3 methods return the same result
d1 = np.linalg.norm(a[1:2] - a, axis=1)
d2 = np.sqrt(((a[1:2] - a) ** 2).sum(1))
d3 = cdist(a[1:2], a)[0]
assert np.allclose(d1, d2) and np.allclose(d1, d3)
The concept of a "norm" is a generalized idea in mathematics which, when applied to vectors (or vector differences), broadly represents some measure of length. There are various different approaches to computing a norm, but the one called Euclidean distance is called the "2-norm" and is based on applying an exponent of 2 (the "square"), and after summing applying an exponent of 1/2 (the "square root").
It's a bit cryptic in the docs, but you get Euclidean distance between two vectors by setting the parameter ord=2.
sum(abs(x)**ord)**(1./ord)
becomes sqrt(sum(x**2)).
Note: as pointed out by @Holt, the default value is ord=None, which is documented to compute the "2-norm" for vectors. This is, therefore, equivalent to ord=2 (Euclidean distance).
Since I don't have a great amount of experience in math or the concepts of deep learning, I was often confused whether the 2 simply meant, in conjunction with the double bars, "apply the L2 norm to the terms within, i.e. square each of them and then sum the result" or if the 2 was, itself, a squaring of whatever the double brackets meant on their own.
I have never seen an author disambiguate the norm delimiters $\lVert\quad\rVert$ through the use of a superscript. In analysis, such notation would be incredibly confusing, since we frequently need to establish inequalities among norms of vectors raised to some power.
Also, an $L^2$ norm of a vector is the square root of the sum of the absolute squares of its components: $$\lVert x\rVert_2=\sqrt{\sum_{i=1}^n\lvert x_i\rvert^2}\text{;}$$ consequently, $$\lVert x\rVert^2_2=\sum_{i=1}^n\lvert x_i\rvert^2\text{.}$$
Just to add to this: since OP mentioned "concepts of deep learning", I'm guessing that the expressions that contain these norms appear in loss functions. Usually, regressive loss functions have a square because they have nicer derivatives for gradient descent.
For example, with a regularisation term added, you would see something like $$ L = \frac{1}{2}\sum_{i=1}^N (y_i - f(\vec x_i))^2 + \frac{\lambda}{2}||\vec w||^2 $$ with $f(\vec x) = \vec w \cdot \vec x$. Lots of squares here, but differentiating to any $w_j$, we have $$ \frac{\partial L}{\partial w_j} = \sum_{i=1}^N (f(\vec x_i) - y_i) x_j + \lambda w_j $$ which would have been a lot less nice without the squares. Other norms are sometimes also used (e.g. $||\vec w||_1$ for L1-regularisation), but the convention in machine learning is always that $||\vec w||$ means $||\vec w||_2$ by default.
To compute the 0-, 1-, and 2-norm you can either use torch.linalg.norm, providing the ord argument (0, 1, and 2 respectively). Or directly on the tensor: Tensor.norm, with the p argument. Here are the three variants: manually computed, with torch.linalg.norm, and with Tensor.norm.
0-norm
>>> x.norm(dim=1, p=0) >>> torch.linalg.norm(x, dim=1, ord=0) >>> x.ne(0).sum(dim=1)1-norm
>>> x.norm(dim=1, p=1) >>> torch.linalg.norm(x, dim=1, ord=1) >>> x.abs().sum(dim=1)2-norm
>>> x.norm(dim=1, p=2) >>> torch.linalg.norm(x, dim=1, ord=2) >>> x.pow(2).sum(dim=1).sqrt()
To calculate norm of different order, you just have to pass in a ord argument with your desiered order. For example:
torch.linalg.norm(t, dim=1, ord = 0)should work for norm.torch.linalg.norm(t, dim=1, ord = 1)should work for 1-Norm.torch.linalg.norm(t, dim=1, ord = 2)should work for 2-Norm.
And so on.
Use numpy.linalg.norm:
dist = numpy.linalg.norm(a-b)
This works because the Euclidean distance is the l2 norm, and the default value of the ord parameter in numpy.linalg.norm is 2.
For more theory, see Introduction to Data Mining:
Use scipy.spatial.distance.euclidean:
from scipy.spatial import distance
a = (1, 2, 3)
b = (4, 5, 6)
dst = distance.euclidean(a, b)

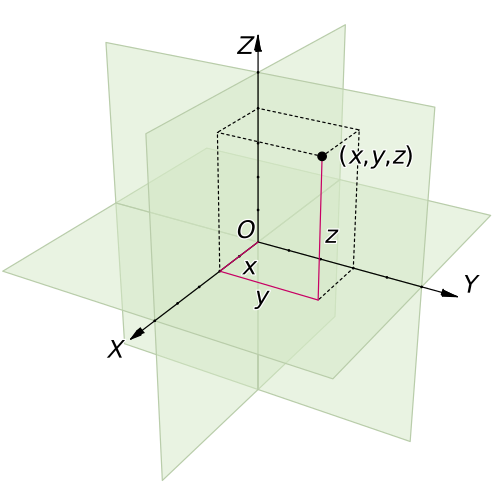

The Euclidean distance formula finds the distance between any two points in Euclidean space.
A point in Euclidean space is also called a Euclidean vector.
You can use the Euclidean distance formula to calculate the distance between vectors of two different lengths.
For vectors of different dimension, the same principle applies.
Suppose a vector of lower dimension also exists in the higher dimensional space. You can then set all of the missing components in the lower dimensional vector to 0 so that both vectors have the same dimension. You would then use any of the mentioned distance formulas for computing the distance.
For example, consider a 2-dimensional vector A in R² with components (a1,a2), and a 3-dimensional vector B in R³ with components (b1,b2,b3).
To express A in R³, you would set its components to (a1,a2,0). Then, the Euclidean distance d between A and B can be found using the formula:
d² = (b1 - a1)² + (b2 - a2)² + (b3 - 0)²
d = sqrt((b1 - a1)² + (b2 - a2)² + b3²)
For your particular case, the components will be either 0 or 1, so all differences will be -1, 0, or 1. The squared differences will then only be 0 or 1.
If you're using integers or individual bits to represent the components, you can use simple bitwise operations instead of some arithmetic (^ means XOR or exclusive or):
d = sqrt(b1 ^ a1 + b2 ^ a2 + ... + b(n-1) ^ a(n-1) + b(n) ^ a(n))
And we're assuming the trailing components of A are 0, so the final formula will be:
d = sqrt(b1 ^ a1 + b2 ^ a2 + ... + b(n-1) + b(n))
There is no unique definition of distance if you mix vectors of differing number of elements ("length", "dimensionality"); usually, people just map vectors of one space to the other.
There are many ways to do these mappings:
- Fill up with zeroes. Say, if you have a car (2D coordinate) and need to compute its distance to an airplane (3D coordinate), this effectively places the car at sea level and does a 3D distance.
- Alternatively, you can drop the z value of the airplane and do a 2D distance.
- Look up the missing values somewhere. With the car-airplane example, to get a 3D coordinate for the car, you'd fire up your geo database and look up heights from longitude/latitude.
These are just the most common possibilities one could come up with; I'm sure there are more.
Choose the one that makes most sense to your application, there is no single "right" way to do it.
